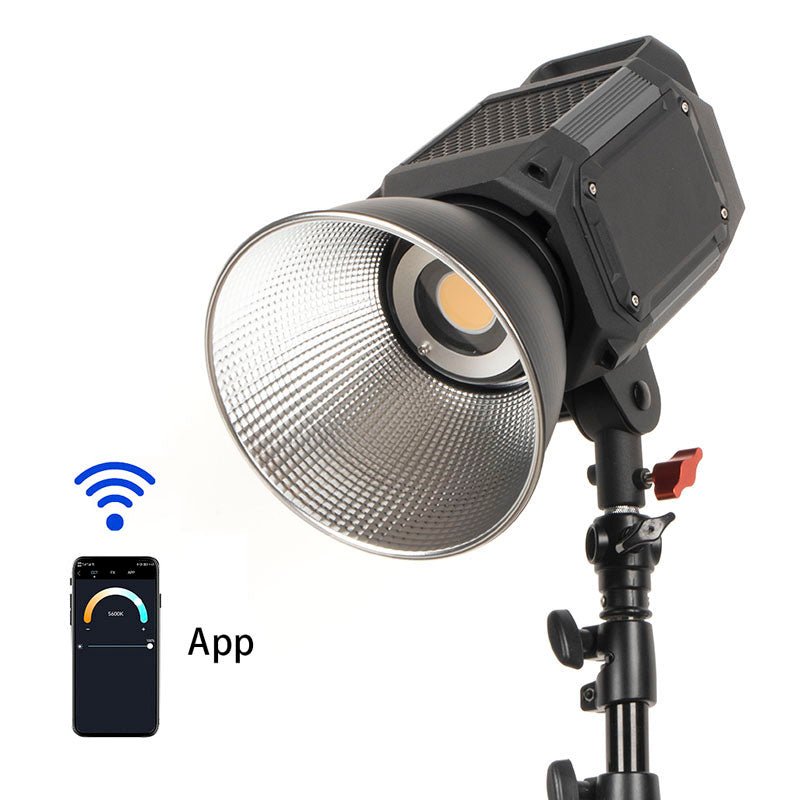

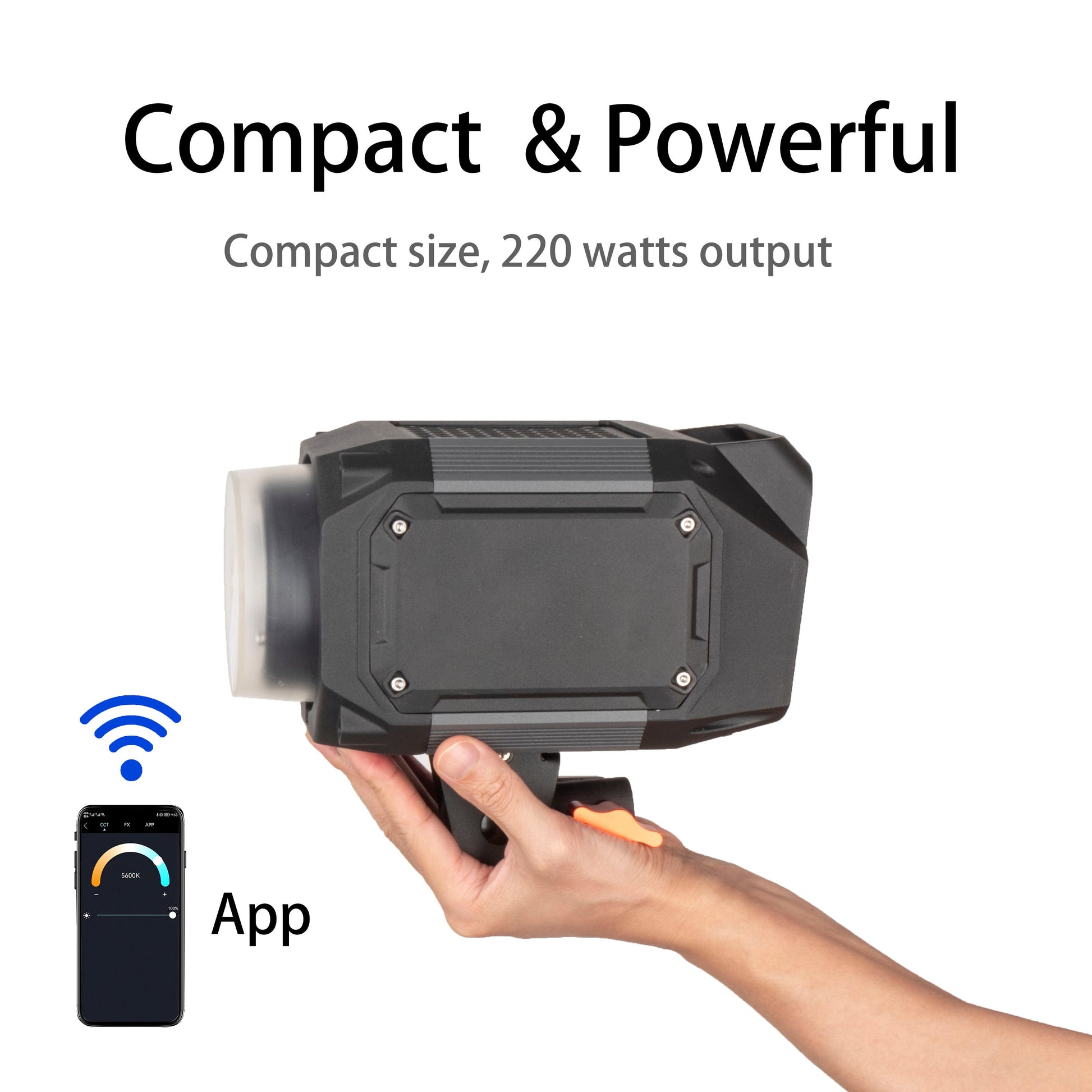

TIOGA Series 220W High Output LED Spotlight
The TIOGA Series High Output LED Spotlight has an accurate color temperature with a color rendering index and TLCI of 95 and above including a working life of more than 50.000 hours. Features 100% PWM integrated digital stepless dimming that enables the dimming process to be linear and uniform. The NTC temperature detection automatically controls the fan speed control providing overheating protection. LCD color digital display shows accurate display of real-time data. The high-strength aluminum shell has good heat dissipation to ensure the overall life of the product. LED heat-free technology ensures that the light source output is stable, consistent and accurate in assorted environments. The mobile APP allows for modification of the various lighting parameters for fast and convenient adjustment. Two lighting versions are available: 220D daylight version and 220B Bi-Color temperature version. Included are 11 preset special effects modes for creativity.
Power cord is 13' (4 Meters) in length and the power adapter cord is 3' (1 Meter) long.
Product Model | 220D | 220B |
---|---|---|
CCT Color Temperature | 5600K(±300K) | 2700K(±150K)-6500K(±300K) |
Brightness Adjustment Range | 0-100% | |
CRI | ≥96 | ≥95 |
Beam Angle | 120° | |
Scenes | Supports 11 Scenes | |
Power | 220W | 220W max |
Working Voltage | AC Power Adapter: 100-240VAC, Light Fixture: 48VDC | |
Size | 23.5 x 13.2 x 24 cm | |
Net Weight | 2.34kg | |
Items Included | LED Spotlight X1, 55 Standard Reflector X1, Power Cord X1, AC Power Adapter X1, Safety Cable X1 |
220D Illuminance Data | ||||||
---|---|---|---|---|---|---|
CCT | 1m Distance | 2m Distance | 3m Distance | 4m Distance | 5m Distance | |
5600K | W/O Reflector | 7456Lux | 1914Lux | 880Lux | 516Lux | 338Lux |
With 55° Reflector | 20511Lux | 4676Lux | 1994Lux | 1100Lux | 707Lux |
220B Illuminance Data | ||||||
---|---|---|---|---|---|---|
CCT | 1m Distance | 2m Distance | 3m Distance | 4m Distance | 5m Distance | |
2700K | W/O Reflector | 4164Lux | 1081Lux | 493Lux | 289Lux | 190Lux |
With 55° Reflector | 12113Lux | 2890Lux | 1258Lux | 701Lux | 455Lux | |
3200K | W/O Reflector | 5287Lux | 1368Lux | 626Lux | 367Lux | 241Lux |
With 55° Reflector | 15389Lux | 3655Lux | 1604Lux | 898Lux | 579Lux | |
4400K | W/O Reflector | 5941Lux | 1579Lux | 726Lux | 425Lux | 279Lux |
With 55° Reflector | 18013Lux | 4358Lux | 1910Lux | 1064Lux | 690Lux | |
5600K | W/O Reflector | 5787Lux | 1541Lux | 707Lux | 416Lux | 274Lux |
With 55° Reflector | 17879Lux | 4266Lux | 1864Lux | 1037Lux | 669Lux | |
6500K | W/O Reflector | 5101Lux | 1333Lux | 620Lux | 365Lux | 240Lux |
With 55° Reflector | 15905Lux | 3760Lux | 1652Lux | 915Lux | 594Lux |
