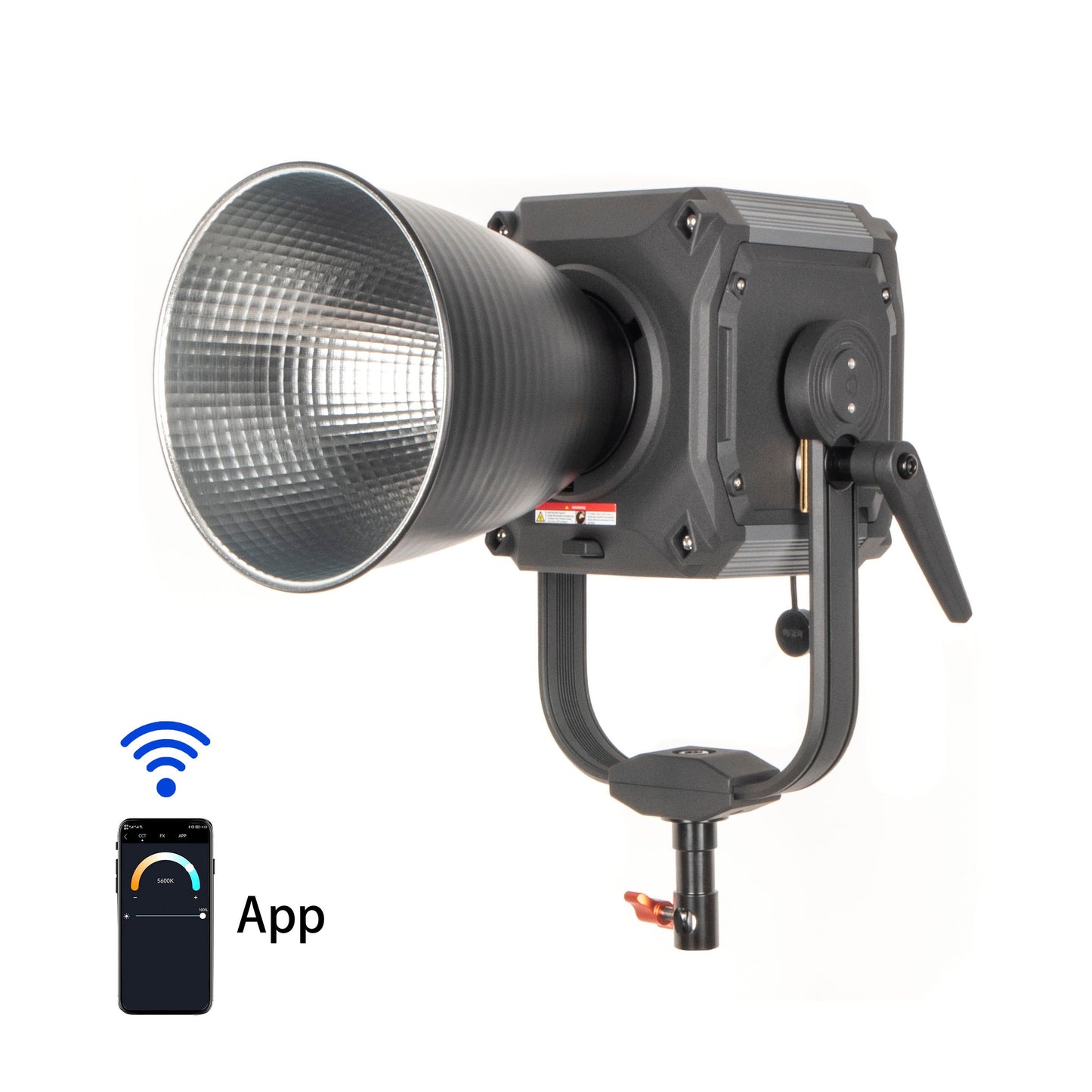

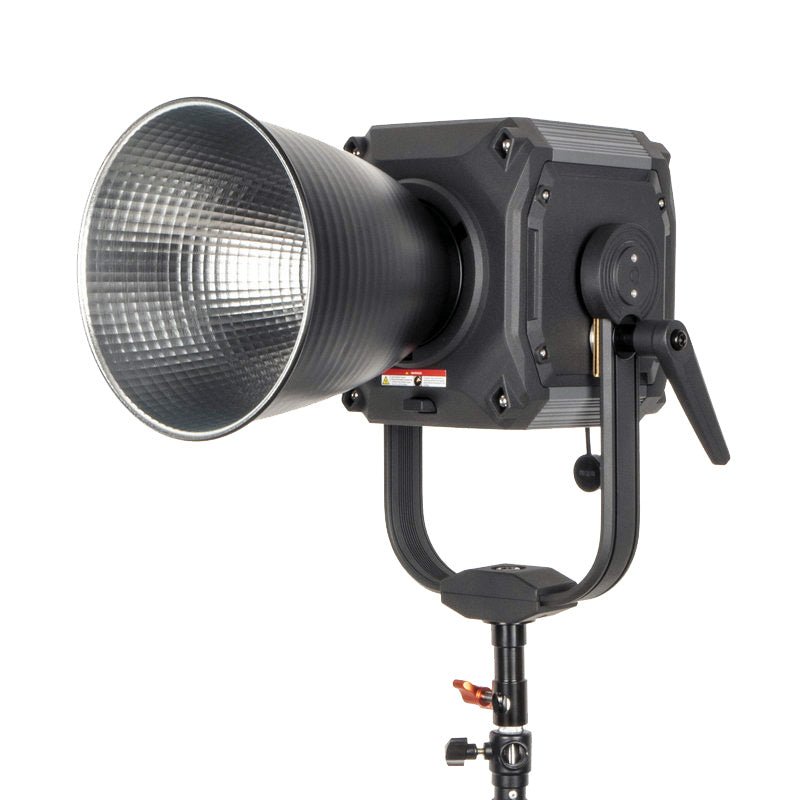

TIOGA Series 660 High Output LED Spotlight

PRODUCT INFORMATION The TIOGA Series High Output LED Spotlight has an accurate color temperature with a color rendering index and TLCI of 95 and above including a working life of more than 50.000 hours. Features 100% PWM integrated digital stepless dimming that enables the dimming process to be linear and...
Please Select One Below:
TIOGA Series 660D (Daylight): $1,288.00
TIOGA Series 660B (Bi-Color): $1,298.00
-
+

Came-TV

Model: TIOGA-660D

PRODUCT INFORMATION

The TIOGA Series High Output LED Spotlight has an accurate color temperature with a color rendering index and TLCI of 95 and above including a working life of more than 50.000 hours. Features 100% PWM integrated digital stepless dimming that enables the dimming process to be linear and uniform. The NTC temperature detection automatically controls the fan speed control providing overheating protection. LCD color digital display shows accurate display of real-time data. The high-strength aluminum shell has good heat dissipation to ensure the overall life of the product. LED heat-free technology ensures that the light source output is stable, consistent and accurate in assorted environments. The mobile APP allows for modification of the various lighting parameters for fast and convenient adjustment. Two lighting versions are available: 660D daylight version and 660B Bi-Color temperature version. Included are 11 preset special effects modes for creativity.

Power cord is 13' (4 Meters) in length, connecting cable is 16.4' (5 Meters) long and DMX cable is 16.4' (5 Meters) long.

Product Manual

TIOGA Series 660W
Manual Here

PRODUCT SPECIFICATIONS
Product Model 660D 660B
LED 600W COB 400W Daylight + 400W Tungsten
Beam Angle 120°
CRI ≥96 ≥95
Color Temperature 5600K(±300K) 2700K(±150K)-6500K(±300K)
TLCI ≥96 ≥97
Working Voltage AC Power Adapter: 100-240VAC, Light Fixture: DC 36-48V
Cooling System Heat Pipe Radiator, Temperature Controlled Fan
Light Body Size 10.4" x 12.1" x 16.8" (263 x 307 x 426 mm)
Power Control Box Size 12.8" x 7.3" x 8.3" (325 x 185 x 212 mm)
Weight Light Body: 12.1lb (5.49kg)
Power Control Box: 11lb (5kg)
Light Body: 12.1lb (5.49kg)
Power Control Box: 8.5lb (3.85kg)
Items Included LED Spotlight, 55° Standard Reflector, Protective Cover, Power Cable, DMX Cable, Connecting Cable, Safety Cable, Soft Carry Case
660D Illuminance Data
CCT   1m Distance 3m Distance 5m Distance 8m Distance
5600K W/O Reflector 21300Lux 2998Lux 1252Lux 548Lux
With 55° Reflector 298800Lux 16967Lux 5698Lux 2396Lux
660B Illuminance Data
CCT   2m Distance 3m Distance 5m Distance 7m Distance 9m Distance
2700K W/O Reflector 2923Lux 1334Lux 510Lux 263Lux 170Lux
With 55° Reflector 2137Lux 8313Lux 2716Lux 1354Lux 836Lux
3200K W/O Reflector 3490Lux 1608Lux 615Lux 318Lux 205Lux
With 55° Reflector 26324Lux 10357Lux 3407Lux 1691Lux 1042Lux
4400K W/O Reflector 4105Lux 1897Lux 723Lux 374Lux 241Lux
With 55° Reflector 31766Lux 12320Lux 4022Lux 1995Lux 1222Lux
5600K W/O Reflector 4215Lux 1943Lux 742Lux 384Lux 247Lux
With 55° Reflector 31762Lux 12269Lux 4017Lux 2019Lux 1240Lux
6500K W/O Reflector 3914Lux 1811Lux 692Lux 358Lux 231Lux
With 55° Reflector 29783Lux 11598Lux 3766Lux 1884Lux 1160Lux
PRODUCT IMAGES

TIOGA Series 660 High Output LED Spotlight

TIOGA Series 660 High Output LED Spotlight

TIOGA Series 660 High Output LED SpotlightTIOGA Series 660 High Output LED Spotlight TIOGA Series 660 High Output LED Spotlight TIOGA Series 660 High Output LED Spotlight TIOGA Series 660 High Output LED SpotlightTIOGA Series 660 High Output LED SpotlightTIOGA Series 660 High Output LED Spotlight

Optional


TIOGA Series 660 High Output LED Spotlight



WHAT'S INCLUDED

TIOGA Series 660 High Output LED Spotlight
